Ground Level Axle Weighing Platform RWS / RWSCP (CE certified)
Ground Level Axle Weighing Platform RWS / RWSCP (CE certified)
Dini Argeo

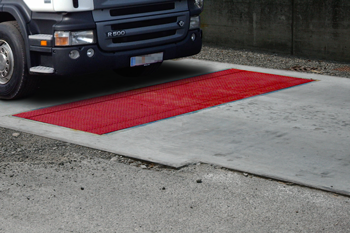

The RWS / RWSCP axle weigher platform at ground level allows for the construction of weighing stations to check the axle weight of vehicles, whether stationary or in motion, and even calculate the total weight of a vehicle in transit by summing its axles. CE approved according to Directive 2014/31/EU for axle weight verification. Custom solution — request your no-obligation quote.
Benefits
Weighs axles while stationary or in motion (vehicle in transit), without needing to stop at each axle. Ideal for frequent weighing.
Control axle weight and detect overloads before driving.
Suitable for legal verification of axle weight.
Unique welded and painted steel structure, no assembly required, simplifying civil works.
Technical features
| Weighing type | Static and dynamic (vehicles at ≤ 5 km/h) |
| Accuracy | 1% internal use · 2% use with third parties |
| Capacity per axle | Up to 20 t (overload detection up to 30 t) |
| Platform dimensions | 3 × 0.73 m |
| Load cells | 6 compression, class C3, stainless steel, IP68 |
| Surface | Non-slip plate |
| Structure and finish | Steel beams, sandblasted + 2-component epoxy paint (anti-corrosion) |
| Connection | 20 m cable, waterproof junction box |
| Regulations | Directive 96/53/CE (loads) · 2014/31/EU (approval) |
* Compatible with a wide range of weight indicators. Ask us about the configuration for your weighing station.
Applications
- Axle weight control for trucks and heavy vehicles.
- Controlled access weighing stations.
- Overload detection to avoid penalties.
- Dynamic weighing for high-volume vehicle operations.
Warranty and support
Dini Argeo product distributed by DeProdeCa, with its own technical service (SAT). We advise you on the design, installation, and commissioning of your axle weighing station.
