DTW "Dual Track" Mobile Axle Weigher (modular, CE-M approved)
On request
Precio bajo presupuesto. Cada instalación es distinta: la calculamos contigo.
Servicio técnico propio. Montaje, puesta en marcha y mantenimiento.
Verificación legal. Te acompañamos en la homologación del equipo.
Detalles del equipo

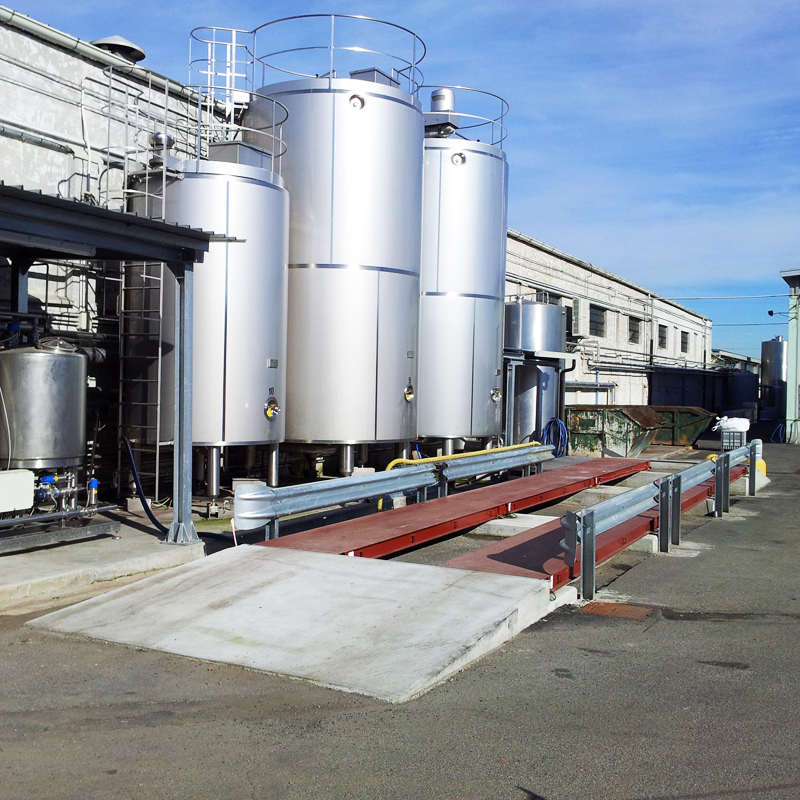

The DTW "Dual Track" Mobile Weighbridge is an innovative dual-track vehicle scale, easily transportable and installable thanks to its reduced height (only 22 cm) and weight. The most efficient alternative to the classic weighbridge, saving time, space, and money. Standard version CE-M 3000e approved for legal trade use. Custom solution — request your no-obligation quote.
Benefits
Mobile and transportable
Install it where you need it and relocate it with ease, ideal when logistical positions vary.
Install it where you need it and relocate it with ease, ideal when logistical positions vary.
Extremely compact (22 cm)
Only 22 cm high: minimal or no civil work, installable on the surface or flush with the ground.
Only 22 cm high: minimal or no civil work, installable on the surface or flush with the ground.
Modular
Configure it in 4.5 / 9 / 13.5 / 18 / 22.5 m (up to 36 m on request) by adding or removing pairs of modules.
Configure it in 4.5 / 9 / 13.5 / 18 / 22.5 m (up to 36 m on request) by adding or removing pairs of modules.
CE-M 3000e approved
Suitable by default for legal trade use (optional dual range 3000+3000e).
Suitable by default for legal trade use (optional dual range 3000+3000e).
Technical specifications
| Type | Mobile dual-track weighbridge (Dual Track) |
| Height | 22 cm |
| Modular lengths | 4.5 / 9 / 13.5 / 18 / 22.5 m (up to 36 m on request) |
| Capacity | According to Directive 96/53/CE (higher loads on request) |
| Surface | Non-slip checker plate |
| Finish | Sandblasted + 2-component epoxy paint (corrosion protection) |
| Detection | Oscillating load bars (patent pending) with limit switches and non-slip plates |
| Installation | On surface or flush with the ground · optional ramps (mobile or fixed) |
| Load cells | Protected against dust and water |
| Connection cable | 30 m as standard (to the weight indicator) |
| Power supply | Indicators with rechargeable battery option (off-grid use) |
Applications
- Weighing of trucks and heavy vehicles.
- Industry, agricultural companies, construction sites, landfills, and ports.
- Facilities where logistical positions frequently change.
- Load control and prevention of overweight penalties.
Options and accessories
- Special capacities and divisions (on request).
- Transport (by quote).
- Up / down mobile ramp kit.
- Angular kit for flush installation with the driving surface or for concrete ramps.
- CE-M approval for dual range 3000 + 3000e (by quote).
Warranty and support
Dini Argeo product distributed by DeProdeCa, with its own technical service (SAT). We advise you on the configuration, transport, installation, and approval of your mobile weighbridge.
