Metal Truck Scale SBP/M-31 (height 31 cm, up to 80 t)
Metal Truck Scale SBP/M-31 (height 31 cm, up to 80 t)
Bilanciai
Precio bajo presupuesto
Producto a medida · solicita tu oferta sin compromiso

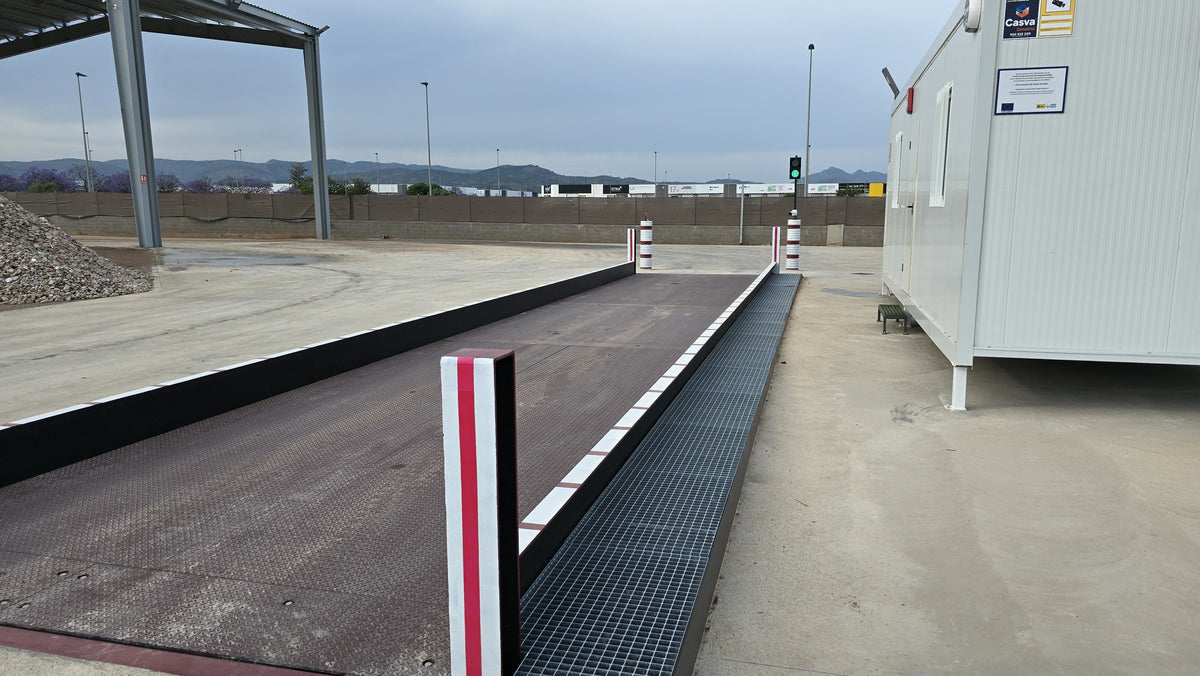

The SBP/M-31 Metal Weighbridge by Coop Bilanciai, in an above-ground version, is the ideal solution for weighing road vehicles up to 80 tons. Modular and easy to transport, handle, and install, with a height of only 31 cm: perfect for spaces with low clearance (under silos, loading docks, etc.). Custom solution. Request your no-obligation quote.
Benefits
Truck weighing up to 80 t
Robust solution for weighing road vehicles with maximum reliability.
Robust solution for weighing road vehicles with maximum reliability.
Only 31 cm high
Extremely low height allows use in spaces with low clearance (under silos, loading docks).
Extremely low height allows use in spaces with low clearance (under silos, loading docks).
Modular metal structure
Independent modules facilitate transport, handling, and installation, with the possibility to later modify the bridge length.
Independent modules facilitate transport, handling, and installation, with the possibility to later modify the bridge length.
Guaranteed long-term operation
Maintains strength and accuracy even with natural foundation settlement.
Maintains strength and accuracy even with natural foundation settlement.
5-year warranty
High durability and high resale value.
High durability and high resale value.
Models and technical features
| Model | Length | Cells | Capacity |
| SBP/M-31-SB 93 | 9.56 m | 6 | 50 t |
| SBP/M-31-SB 123 | 12.22 m | 6 | 50 t |
| SBP/M-31-SB 143 | 14.00 m | 8 | 80 t |
| SBP/M-31-SB 183 | 18.00 m | 8 | 60 / 80 t |
| Height | 31 cm |
| Platform width | 3 m |
| Load cells | Compression, stainless steel IP68/69K, digital version |
| Structure | Longitudinal steel beams, sandblasted and "rust red" anti-corrosion paint |
| Installation | Above-ground with metal or prefabricated concrete ramps. Max slope 2.5% allowed |
| Multi-range | Available (digital version) |
Design and durability
- Anti-shock stops and double front edge protect civil works when the vehicle brakes.
- Non-slip diamond plate surface prevents slips and water stagnation.
- Transverse access hatches for easy cell access, with stainless steel screws.
- Cells with oscillating stainless steel supports and galvanized protections.
- Electrical protection device for the cell against overvoltages and lightning strikes.
- Junction box with surge protection and IP68 cell housing.
- Real-time self-diagnosis (digital version).
Applications
- Weighing of trucks and heavy vehicles (up to 80 t).
- Low-height above-ground installations.
- Spaces with low clearance: under silos, loading docks.
- Sloped surfaces (up to 2.5%).
Accessories and options
- ATEX version (explosive risk environments).
- Hot-dip galvanized metal structure (450 °C).
- Custom colored metal structure.
- Guardrails for installation on the weighbridge or on the ground.
- Metal frame (installation without masonry work).
- Adjustable supports for sloped surfaces.
- Pair of 3 m wide metal ramps.
- Pair of two-lane prefabricated concrete ramps.
- Electronic terminals and printers.
- Peripheral electronic accessories.
- Anti-rodent cable kit (for digital cells).
- D-Link for wireless connections.
Warranty and support
5-year warranty. Bilanciai product distributed by DeProdeCa, with own technical service (SAT). We advise you on the design, ramps, installation, and homologation of your weighbridge.
