Mixed Steel/Concrete Truck Scale SBP/CO (up to 80 t)
Mixed Steel/Concrete Truck Scale SBP/CO (up to 80 t)
Bilanciai
Precio bajo presupuesto
Producto a medida · solicita tu oferta sin compromiso

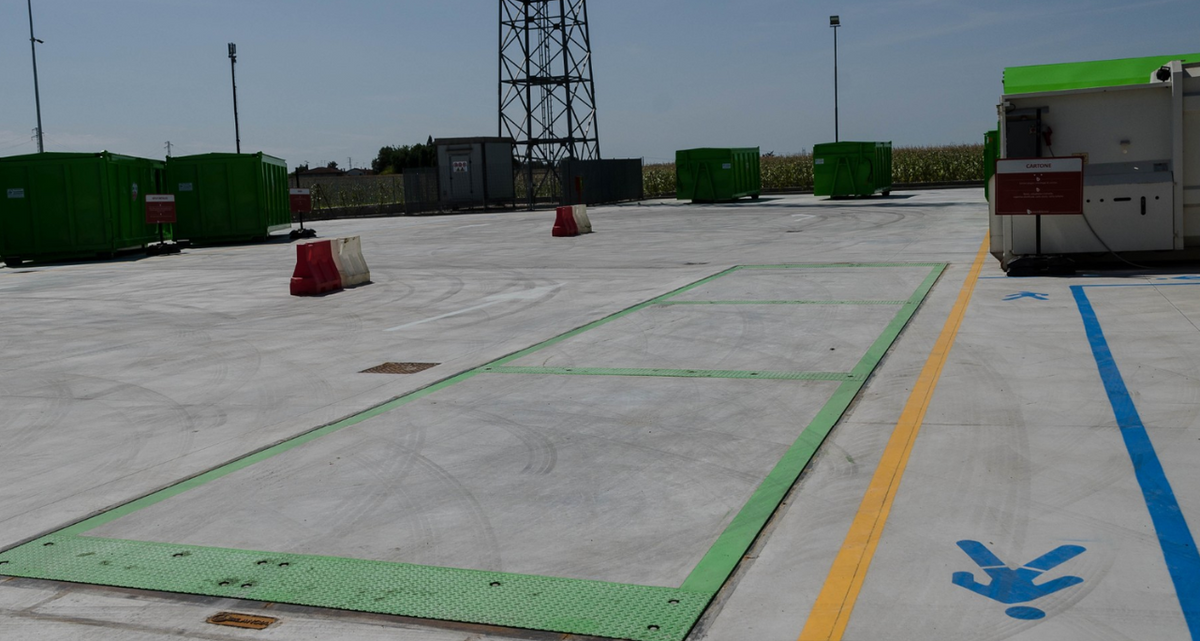

The SBP/CO Weighbridge, in its mixed steel-concrete version (poured on site), is the best solution for weighing trucks up to 80 tons. Versatile, high-quality, and ideal for corrosive environments. Its isostatic structure of independent modules facilitates transport and assembly, and guarantees reliable operation over time. Tailored solution: request your no-obligation quote.
Benefits
Truck weighing up to 80 t
Robust solution for weighing heavy vehicles with maximum reliability.
Robust solution for weighing heavy vehicles with maximum reliability.
Versatile: pit-mounted or above-ground
Classic pit-mounted version with a base of only 50 cm, or above-ground with a ramp of only 40 cm.
Classic pit-mounted version with a base of only 50 cm, or above-ground with a ramp of only 40 cm.
Ideal for corrosive environments
Stainless steel load cells with IP68/69K protection.
Stainless steel load cells with IP68/69K protection.
Multi-range
Get the most advantageous minimum division in relation to the range (digital version).
Get the most advantageous minimum division in relation to the range (digital version).
5-year warranty
High durability and high resale value.
High durability and high resale value.
Models and technical specifications
| Model | Length | Cells | Capacity |
| SBP-CO 93 | 9.56 m | 6 | 40 t |
| SBP-CO 143 | 14.00 m | 8 | 60 t |
| SBP-CO 183 | 18.00 m | 8 | 60 / 80 t |
| SBP-CO 203 | 19.78 m | 10 | 60 / 80 t |
| Platform width | 3 m |
| Load cells | Compression, stainless steel IP68/69K (Coop Bilanciai) · digital or analog |
| Structure | Longitudinal steel beams + on-site concrete; sandblasted + anti-corrosion "red oxide" paint |
| Installation | Pit-mounted (50 cm base) or above-ground (40 cm ramp) |
| Multi-range | Available (digital version only) |
Design and durability
- Anti-collision stops that protect civil works by braking the vehicle.
- Cells 35 cm from the wall: prevent debris and dirt accumulation.
- Access hatches to the cells for quick and easy maintenance.
- Independent bridges: even weight distribution and increased durability.
- Cells with spherical socket for protection against dust and dirt.
- Real-time individual self-diagnosis (digital version).
Applications
- Weighing of trucks and heavy vehicles (up to 80 t).
- General installation, pit-mounted or above-ground.
- Corrosive and outdoor environments.
- Industry, logistics, aggregates, waste, and agriculture.
Accessories and options
- MULTI-RANGE version (digital version only).
- ATEX version (explosive risk environments).
- Electronic terminals and printers.
- Compacted ramp frame.
- Custom colored metal structure.
- Peripheral electronic accessories.
- Anti-rodent cable kit (for digital cells).
- D-Link for wireless connections.
Warranty and support
5-year warranty. Bilanciai product distributed by DeProdeCa, with its own technical service (SAT). We advise you on the design, civil works, installation, and homologation of your weighbridge.
