Wireless WWS Portable Vehicle Axle Weighing Kit and Touchscreen Terminal
Wireless WWS Portable Vehicle Axle Weighing Kit and Touchscreen Terminal
Dini Argeo

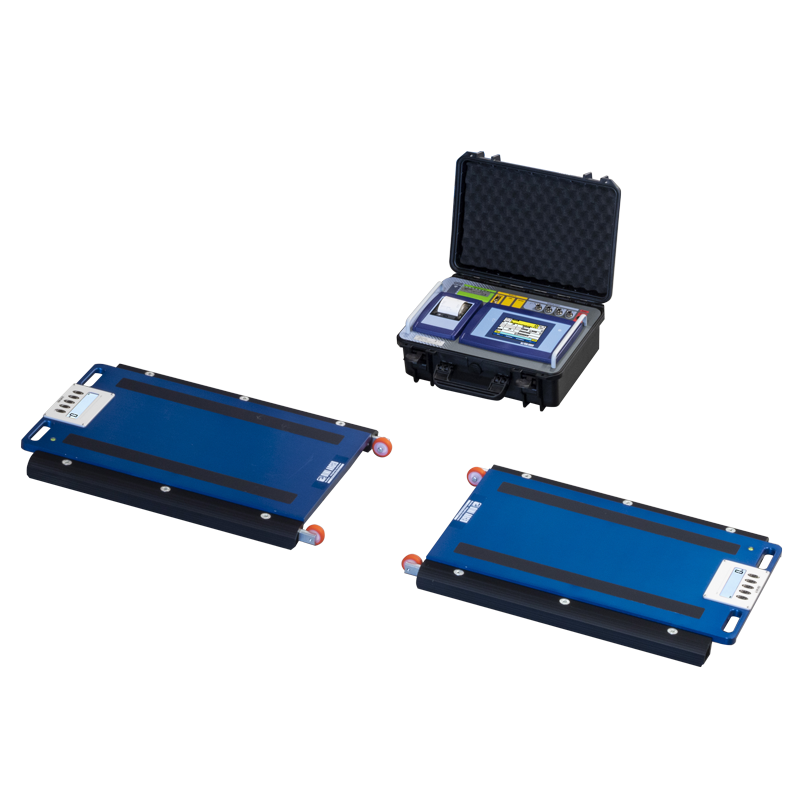

Portable and wireless kit for weighing the axles of any vehicle, without cables or installation. It consists of 2 WWS radio frequency weighing platforms and a wireless touchscreen terminal with printer. You place the platforms under the wheels and weigh comfortably, even without getting out of the vehicle. The equipment adds up the axles and gives you the total weight.
How does it work? In 3 steps
1. Place the 2 wireless platforms under the wheels of the axle.
2. The vehicle drives onto them (no cables to connect).
3. The terminal receives the weight by radio, displays each axle, and calculates the total. Done.
Benefits
2.4 GHz radio frequency communication. No cables between the platforms and the terminal: faster and more convenient to set up.
With integrated wheels and carrying case. Set it up wherever you want, no pit or installation needed.
Lightweight aluminum alloy, with IP68 protection (water and dust).
Easy to use, with integrated printer, database for 500 vehicles, and up to 10 hours of battery life.
The final price depends on the capacity and configuration you choose.
Available platforms (choose 2)
| Size | Dimensions (mm) | Capacity per axle |
| Compact (C) | 565x400x58 | 1,500 to 15,000 kg |
| Medium (E) | 750x450x58 | 6,000 to 15,000 kg |
| Large (D) | 950x500x58 | 10,000 to 20,000 kg |
Division from 0.5 to 10 kg, with high-resolution option. We advise you on the best option for your vehicle.
Terminal and functions
- Color touchscreen terminal 3590ETKR2G4-AF09-1 with 2.4 GHz radio module and integrated printer.
- Weather-protected carrying case.
- Database for 500 vehicles, predefined tare, and weight difference calculation.
- Customizable texts and USB port for data export.
- Rechargeable battery with up to 10 hours of autonomy.
Approval
CE marked according to Directive 2014/31/EU (NAWI) for static axle weight verification.
Applications
Trucks, tractors, and multi-axle vehicles. Overload control, verification of transported goods, entry and exit control, agricultural campaigns, and temporary weighing without construction.
Warranty and support
Dini Argeo product distributed by DeProdeCa, with its own technical service (SAT), calibration, homologation, and advice. Includes manufacturer's warranty.
