Portable Vehicle Axle Weighing Kit with WWS Cable and Touch Terminal
Portable Vehicle Axle Weighing Kit with WWS Cable and Touch Terminal
Dini Argeo

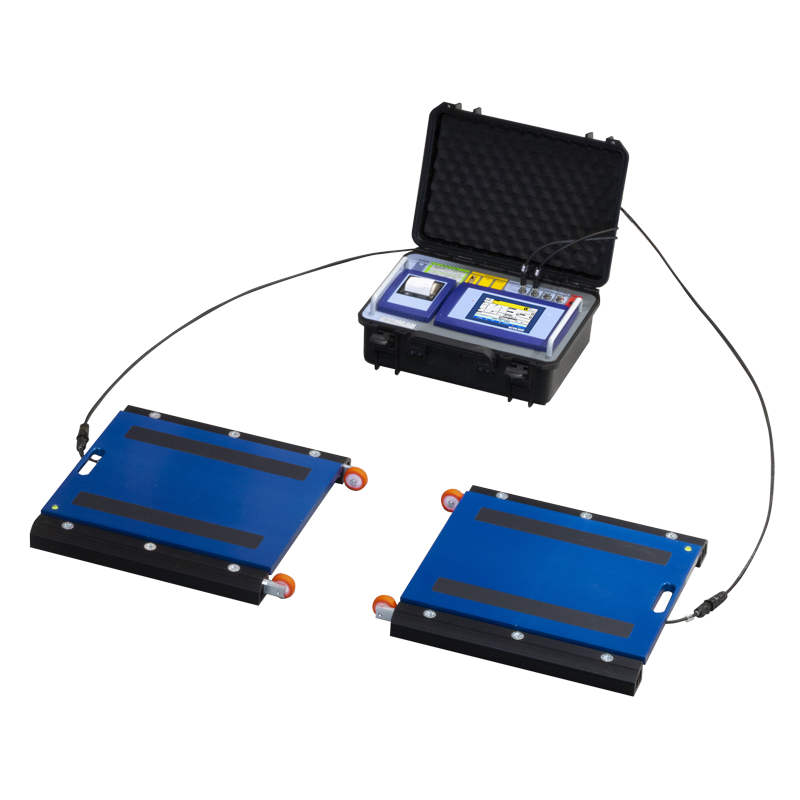

Portable kit for weighing vehicle axles without construction or fixed installation. It consists of 2 WWS weighing platforms and a touchscreen terminal with a printer. You place one platform under each wheel of the axle, and the system sums the weights of all axles to give you the total weight of the vehicle. Ideal for controlling overloads and avoiding penalties.
How it works? In 3 steps
1. Place the 2 platforms on the ground, under the wheels of the axle.
2. The vehicle drives over or stops on them.
3. The terminal displays the weight of each axle and calculates the total. Done.
Benefits
With integrated wheels, you can move and set it up anywhere. No pit or installation needed.
With the vehicle stopped, or moving up to 5 km/h for faster operation.
Lightweight and highly resistant aluminum alloy, with IP68 protection (water and dust).
Easy to use, with integrated printer, database for 500 vehicles, and up to 10 hours of battery life.
The final price depends on the capacity and configuration you choose.
Available platforms (choose 2)
| Size | Dimensions (mm) | Capacity per axle |
| Compact (C) | 500x400x58 | 1,500 to 15,000 kg |
| Medium (E) | 700x450x58 | 6,000 to 15,000 kg |
| Large (D) | 900x500x58 | 6,000 to 20,000 kg |
| Extra Large (F) | 900x700x75 | 15,000 to 20,000 kg |
Resolution from 0.5 to 10 kg depending on capacity. We will advise you on the best option for your vehicle.
Terminal and functions
- 3590ETKR09-3 color touchscreen terminal with integrated thermal printer.
- Transport case with weather protection.
- Database for 500 vehicles, preset tare, and weight difference calculation.
- Customizable texts and USB memory option.
- Rechargeable battery with up to 10 hours of autonomy.
Approvals
- CE Directive 2014/31/EU for static axle weight verification (NAWI).
- OIML R134 for dynamic weighing (up to 5 km/h).
- Dynamic weighing approvals in various European countries.
Applications
Overload control, verification of transported goods weight, seasonal agricultural campaigns, goods entry and exit control, and temporary weighing without the need for construction.
Warranty and support
Dini Argeo product distributed by DeProdeCa, with own technical service (SAT), calibration, homologation, and advice. Includes manufacturer's warranty.
