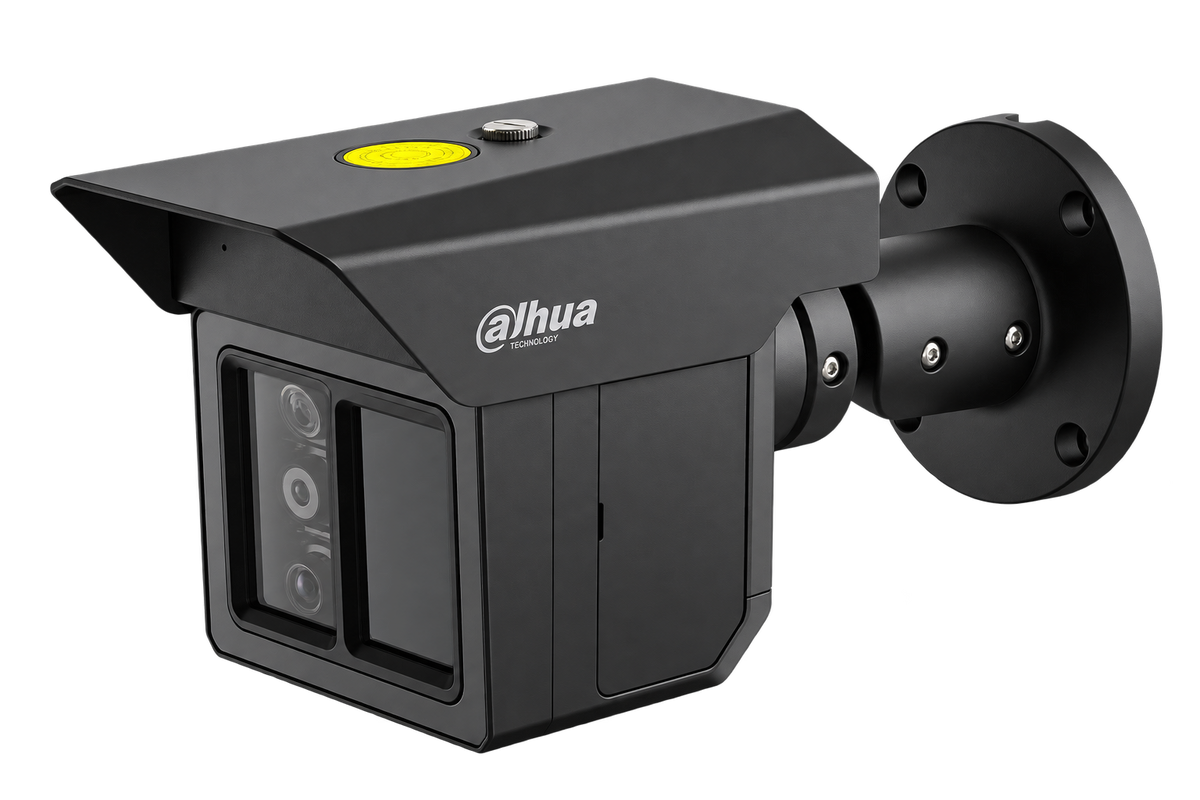

Dahua WizMind 5 2MP Triple Optical IP Camera DAHUA-5313 (long-range perimeter protection, 100m IR)
Detalles del equipo
Dahua WizMind 5 triple optical IP camera with 3 2MP sensors and three fixed focal lengths (3.6, 12, and 25 mm) to cover short, medium, and long distances with a single camera. It stands out for its long-range perimeter protection with human and vehicle detection at 100 m or more, IR illumination up to 100 m, and IP67 and IK10 robustness.
Benefits
Three lenses (3.6, 12, and 25 mm) cover short, medium, and long distances simultaneously.
Detection and classification of humans and vehicles at 100 m or more, reducing false alarms.
IR illumination up to 100 m with 8 integrated LEDs.
IP67 and IK10 protection, with a range of -40 °C to 60 °C.
Dual integrated microphone and speaker.
Optics and technical specifications
| Channel | Optics | H Angle | Min. focus |
| Channel 1 | 3.6 mm (F1.6) | 85.9° | 1.1 m |
| Channel 2 | 12 mm (F2.0) | 25.7° | 8.6 m |
| Channel 3 | 25 mm (F2.8) | 13° | 19.6 m |
| Sensors | 3 x 1/2.8" CMOS, 2MP (1920x1080) each |
| Minimum illumination | from 0.0007 lux (color), up to 0 lux with IR |
| IR illumination | Up to 100 m (8 IR LEDs) |
| Day / Night | Auto (ICR), color and B/W |
| Micro PTZ | Vertical adjustment from -5° to 10° |
Video
- H.265, H.264/H/B, and MJPEG (substream) compression.
- Stream 1: 1920x1080 at 1 to 25 fps on all 3 channels. Stream 2: 704x576 at 1 to 25 fps.
- VBR and CBR rate control. Bitrate from 3 kbps to 8192 kbps per channel.
- BLC, HLC, digital WDR, 3D NR, Scene Self-adaptation, AI-ISP, and Defog.
- Area illumination in 6 zones, privacy mask (8 areas), and ROI (4 areas).
Smart Functions
- Perimeter protection on all 3 channels: intrusion and tripwire with precise human and vehicle classification.
- Long-range perimeter protection with human and vehicle detection at 100 m or more.
- Smart Search with Smart NVR for refined search, event extraction, and merging.
- Smart alarms are managed via channel 1.
Audio, alarms, and storage
- Two-way audio with dual microphone and speaker. 1 RCA input and 1 RCA output. G.711a, G.711Mu, PCM, G.726, and G.723.
- 2 alarm inputs and 2 alarm outputs (wet contact). 1 RS-485 port (1200 bps to 115200 bps).
- MicroSD up to 1 TB (not included), plus storage on FTP, SFTP, and NAS.
Network and protocols
- RJ45 10/100 Base-T port, with SDK and API.
- Protocols IPv4, IPv6, HTTP, TCP, UDP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, multicast, SNMP, P2P, and more.
- ONVIF Profile S, G, T, and M, and CGI. Up to 20 users.
- Smart PSS Lite, DSS, DMSS, and DoLynk Care software.
Power, environmental, and physical
| Power | 12 VDC (±30%), PoE+ 802.3at and ePoE, with dual backup. Max. consumption 23.6 W (PoE) |
| Temperature | from -40 °C to +60 °C, humidity up to 95% non-condensing |
| Protection | IP67 and IK10 |
| 3AXIS | Horizontal 0° to 360°, vertical 0° to 70°, rotation 0° to 360° (with gradienter level) |
| Material | Metallic, black color |
| Dimensions | 278.6 x 124.0 x 140.4 mm. Net weight 2.4 kg. Wall, junction box, or pole installation |
Contents and certifications
Includes: Dahua WizMind 5 triple optical IP camera DAHUA-5313 (DH-IPC-MFW5241T2P-E3-ASE-0360/1200/2500B-QH-Black).
Certifications: CE-LVD EN 62368-1 and CE-EMC (Directive 2014/30/EU).
Warranty and support
Dahua product distributed by DeProdeCa, with own technical service (SAT) and advice on selection, installation, and configuration. Includes manufacturer's warranty.
