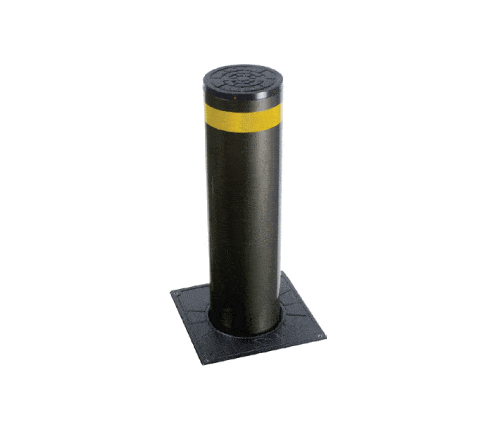

Aprimatic ApriPASS EM 115/200 Automatic Bollards
Aprimatic ApriPASS EM 115/200 Automatic Bollards
Aprimatic
Precio bajo presupuesto
Producto a medida · solicita tu oferta sin compromiso
The Aprimatic ApriPASS EM 115/200 automatic bollards allow for vehicle access control and restriction of circulation in pedestrian areas, regulating road traffic and protecting spaces from unauthorized access. Robust, reliable, and with automatic lowering in the event of a power failure. A tailor-made solution. Request your no-obligation quote.
Benefits
Access and traffic control
Restrict vehicle passage in pedestrian and regulated areas, organizing circulation.
Restrict vehicle passage in pedestrian and regulated areas, organizing circulation.
High impact resistance
Up to 110,000 J of breaking resistance (EM 200 version) to protect sensitive areas.
Up to 110,000 J of breaking resistance (EM 200 version) to protect sensitive areas.
Reliable and safe
IP67 protection, electric brake in the raised position, and automatic lowering in case of power outage.
IP67 protection, electric brake in the raised position, and automatic lowering in case of power outage.
Designed for intensive use
500 cycles per day and MCBF of 400,000 operations.
500 cycles per day and MCBF of 400,000 operations.
Customizable
RAL paint finish and optional top ring with LED lighting.
RAL paint finish and optional top ring with LED lighting.
Technical specifications
| Specification | EM 115 | EM 200 |
| Rising time | 6.0 s | 9.0 s |
| Wall thickness | 4 mm | 5 mm |
| Breaking resistance | 60,000 J | 110,000 J |
| Power supply | 230 Vac ±10%, 50 Hz |
| Absorbed power | 0.20 kW |
| Operating frequency | 500 cycles per day (MCBF 400,000) |
| Protection rating | IP67 |
| Temperature range | -40 °C to 60 °C |
| Safety | Electric brake in raised position and automatic lowering in case of power failure |
| Finish | RAL 7031 lacquered (other RAL colors optional) |
| Control | CDS or CDS-K unit (up to 4 bollards per control unit) |
Applications
- Vehicle access control in pedestrian and restricted areas.
- Road traffic regulation.
- Protection of buildings, enclosures, and sensitive areas.
- Urban centers, private access, and facilities.
Accessories and options
- Top ring with LED lighting (EM 200/700 model).
- Backup batteries.
- TCP/IP remote control module.
- Custom RAL colors.
Warranty and support
Aprimatic product distributed by DeProdeCa, with its own technical service (SAT). We advise you on the selection, installation, and maintenance of your automatic bollards.
