"COMPACT" TWIN FORKS WEIGHING FORKS
"COMPACT" TWIN FORKS WEIGHING FORKS
DEProdeCa
Couldn't load pickup availability

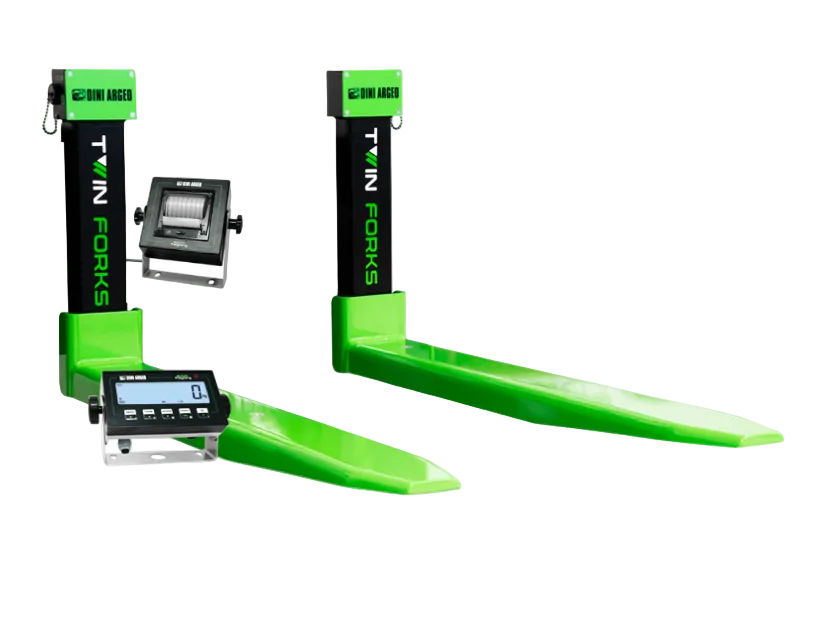

Dini Argeo's TWIN FORKS "COMPACT" weighing forks transform your forklift into a mobile scale, allowing you to read the weight directly from the cab. A robust steel weighing solution, with Bluetooth 5.0, a rechargeable lithium battery, and a CE-M approved version for commercial use.
Benefits
Weigh without stopping your operations
Your forklift becomes a mobile scale, and you read the weight directly from the cab, without moving the load to a fixed scale.
Quick installation and removal
Simple and versatile solution that you can quickly mount and remove for use on several forklifts.
100% steel construction
Robust steel structure designed to withstand accidental impacts from daily work.
Great autonomy without cables
Rechargeable lithium battery and low-power Bluetooth 5.0 for typical autonomy of up to 90 hours.
Automatic power on
The integrated accelerometer turns on the forks as soon as you move them, without manual steps.
Optional CE-M approval
Available in CE-M approved version (Directive 2014/31/EU) for legal weighing in operations with third parties.
Technical specifications
| LTF2500 Version · Max capacity | 2,500 kg |
| LTF2500 · Resolution | Internal use 1/2 kg · CE-M 2/5 kg |
| LTF2500 · Accuracy | Internal use ±2 kg · CE-M according to Directive 2014/31/EU |
| LTF2500 · Temperature | Internal use −10…+50 °C · CE-M −10…+40 °C |
| LTF5000 Version · Max capacity | 5,000 kg |
| LTF5000 · Resolution | Internal use 2/5/10 kg · CE-M 5/10 kg |
| LTF5000 · Accuracy | Internal use ±5 kg · CE-M according to Directive 2014/31/EU |
| LTF5000 · Temperature | Internal use −10…+50 °C · CE-M −10…+40 °C |
| Structure | Painted steel · IP66 |
| Fork length | 1,162 mm |
| Weight per fork | ≈115 kg |
| Load cells | 4 Dini Argeo stainless steel IP68 cells, 3,000 kg each, low consumption |
| Allowable overload | 300% of nominal capacity |
| Max horizontal inclination (flexion) | ±2° (only for commercial use) |
| Power supply | Rechargeable lithium battery with INSTAPLUG technology |
| Autonomy | Up to 90 h; continuous use with additional batteries (opt. INSTAPLUGLKC) |
| Charger | Included (EU/UK/US plugs) |
| COMPACT display | Backlit 25 mm display, quick cabin mounting |
| Connectivity | Low-power Bluetooth 5.0 |
| Display functions | Direct weight reading, tare, and basic weighing functions |
| Approval | CE-M available (ECEMLTF option) |
| Printer option | Thermal printer (cabin or external) via Bluetooth: ticket with weight, tare, date/time, operator/vehicle ID, and accumulations |
| On request | Version for FEM2B plate |
Applications
- Weighing of palletized loads directly during handling with a forklift.
- Merchandise control in warehouse shipments and receipts.
- Weight verification in truck loading and unloading operations.
- Mobile weighing shared between several forklifts thanks to quick mounting.
- Commercial operations with third parties using the CE-M approved version.
- Issuance of weighing tickets on-site with the thermal printer option.
Warranty and support
Product with official Dini Argeo warranty. At DEProdeCa, we have our own Technical Assistance Service (TAS) for advice, commissioning, maintenance, and repair of your weighing equipment.
