Dini Argeo

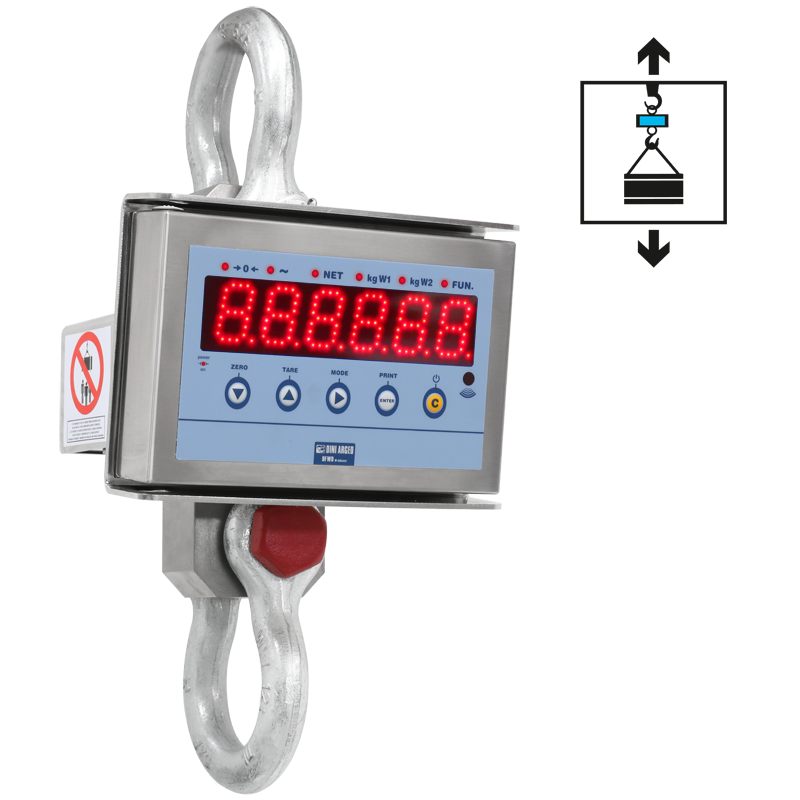

MCW09 SERIES STAINLESS STEEL WEIGHING HOOKS

1.740,70 €

Price excl. VAT · 21% VAT added at checkout

Pedir presupuesto o asesoramiento

Referencia MCWNT1-3

Servicio técnico propio. Instalación, mantenimiento y repuestos sin intermediarios.

Envío a toda la península. Consulta plazo si no hay stock inmediato.

Devolución hasta 30 días. Y asesoramiento técnico antes de comprar.

Detalles del equipo

MCW09 Series stainless steel weighing hook: a hook scale (electronic dynamometer) with IP67 dust and water protection, ideal for industrial weighing on cranes, bridge cranes, and hoists. Available in capacities from 3,000 to 50,000 kg.

Benefits

Visible reading in any condition

Large 40 mm LED display with DOT technology ensuring maximum visibility from any angle and in any light condition, including direct sunlight.

Dust and water resistant

IP67 protection allows it to be used in demanding industrial environments with the presence of dust and water.

Stainless steel construction

Stainless steel structure provides robustness and durability against loads and continuous use.

Compliant with European regulations

Complies with directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, and 2014/30/EU.

Transport packaging included

For complete protection against bumps and scratches during transport, the dynamometer is shipped in a wooden box designed for this product. This service is included in the price.

Technical Features

Code	Max (kg) / d (kg) / e (kg) / d HR (kg)*
MCW09T3-1	3000 / 1 / 1 / 0,5
MCW09T6-1	6000 / 2 / 2 / 1
MCW09T9-1	9000 / 5 / 5 / 2
MCW09T12-2	12000 / 5 / - / 2
MCW09T17-2	17000 / 10 / - / 5
MCW09T25-1	25000 / 10 / - / 5
MCW09T30-1	30000 / 20 / - / 10
MCW09T50-1	50000 / 20 / - / 10
Display	40 mm DOT LED
Protection	IP67 (dust and water)
Material	Stainless steel
Regulations	2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU

Applications

Weighing suspended loads on cranes, bridge cranes, and hoists.
Weight control in industry, warehouses, and logistics centers.
Applications in dusty or humid environments thanks to its IP67 protection.
Weighing large loads, up to 50,000 kg depending on the model.

Warranty and support

Product with official warranty. At DEProdeCa, we have our own Technical Assistance Service (SAT) to answer questions, advise you on model selection, and provide post-purchase support.
